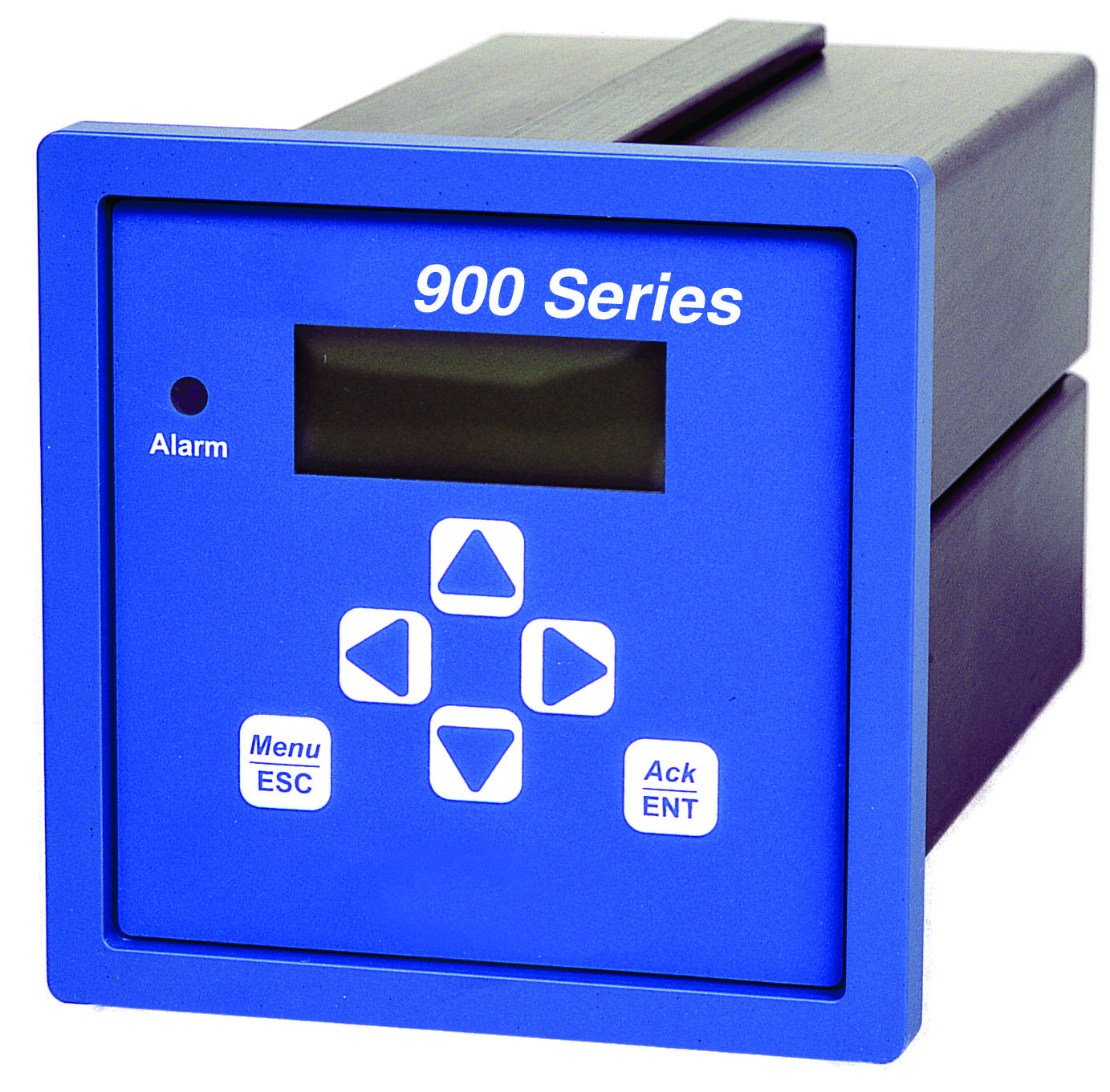

OUM960

• Measures UV absorbance up to 50 AU/OD units
• 4 X 20 character alphanumeric display and 6 button input for simple navigation
• Two 4-20mA analog outputs
• User-friendly menu-based calibration: liquid-free calibration using the EasyCal™ system and wet calibration using prepared liquid standards
• Four configurable digital inputs and three optically isolated digital outputs can be connected to a PLC for inclusion in a control scheme
• Built-in diagnostics to report any system errors or alarms, including sensor failures, open cable and internal
processor exceptions
• Lamp illumination timer for preventative maintenance and lamp life determination
• Baseline and baseline shift functions allow the operator to manually set artificial zero point
• Advanced log amp provides improved response characteristics
• Front panel environmental protection level is rated at NEMA 4/IP65 – optional NEMA 4/IP65 fi eld mount
enclosures available

Data Sheet with Configurator

Download

SKU: 94b3a482d990-1-53 Categories: ,
